EDM 67K Series Drills Multipurpose / Diamond / RC

Up to 67klbf Holdback

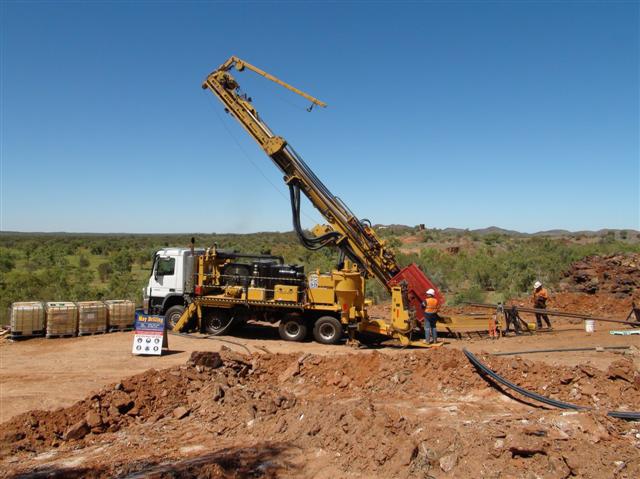

The EDM 67K Series are high-capacity, heavy duty rigs available in Diamond, RC and Multipurpose configurations. Track or Truck mounted, the rig can be supplied with a high-spec on-board compressor and is ideal for deep-hole diamond coring and reverse circulation projects in tough locations.

Like all EDM machines the EDM 67K Series rigs adhere to the strictest global safety standards and have an extensive range of standard features and options for winches, make and break tools, cyclones/splitters, booster and rod handling/storage allowing them to be customized to your specific requirement. The EDM 67K Series rigs have been a trusted workhorse for leading contractors around the world who are looking for a reliable and highly productive machine that delivers consistently good results in the toughest environments.


Diamond Core Depth Capacity


  • N+ 3360m
  • H+ 2378m
  • P+ 1572m

Reverse Circulation Depth Capacity


  • 4.5" Dual Wall: 520m


Features


  • Tracks (Cat 330L) or Truck (8x4/8x8) mounted
  • 67,000lbs of pullback capacity
  • 7.6m (25ft) rotary head stroke, 45° - 90° drilling angles
  • 400HP to 755HP T3 or T4 Final engine options available (subject to on-board compressor)
  • Main and Wireline Winch limiters to prevent rods/overshot accidentally being pulled through the drum/sheaves
  • Various breaker options from Metzke or Airdrill etc.
  • EDM Rod Handler and tilting on board Rod Bin onboard
  • Onboard or standalone Compressor
